GP Series-ip 65

Dust & water-proof, high-capacity industrial balance

gp



GX/GF Series Precision Balances | Balances | Weighing | Products | A&D

Features
High-speed weighing with 1-second stabilization
Adjustable response characteristics to help cope with the effect of drafts and vibrations (GX: manual or automatic / GF: manual only)
Automatic self calibration to maintain accuracy under temperature changes (GX)
Multiple weighing units: g, oz, lb, lb-oz, ozt, ct, mom, dwt, grain, specific gravity, and a user-programmable unit for conversion applications (either tael, tola or Newton can be added upon request)
Large bright vacuum fluorescent display
GLP/GMP/GCP/ISO compliant output
Clock and calendar function (GX)
Data memory function
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function
Animal weighing (hold) function
Comparator function with buzzer
Auto power on/off function
Underhook function
Density determination function (an optional density determination kit is available for the models with 0.001 g resolution)
Windows Communication Tools software (WinCT) on CD-ROM
Quick reference card provided
External Input/Output
RS-232C interface
Quick USB interface (optional)
Analog output (optional)
Current loop output (optional)
Comparator output with a buzzer (optional)
Options
GX-02: Quick USB interface with cable
GX-04: Comparator output with a buzzer/RS-232C/Current loop output
GX-06: Analog output/Current loop output
GX-10: Glass breeze break for the pan size of 128 mm × 128 mm
GX-11: Glass breeze break for the pan size of 165 mm × 165 mm
GX-12: Animal weighing pan (not applicable for GX/GF-200)
GX-13: Density determination kit (for the pan size of 128 mm × 128 mm only)* Only one of GX-02, GX-04, GX-06 or the standard RS-232C can be used
** GX-04 and GX-06 are factory-installed options.
Accessories
AD-1682 : Rechargeable battery unit
AD-1683 : Static eliminator
AD-1684 : Electrostatic field meter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-1691 : Weighing environment analyzer
AD-8118C : Universal printer
AD-8121B : Compact printer
AD-8526 : Serial/Ethernet converter
AD-8527 : Quick USB adapter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-USB-25P : Serial/USB converter
AX-KO1710-200 : RS-232C cable (25P-9P)
AX-SW128 : Foot switch

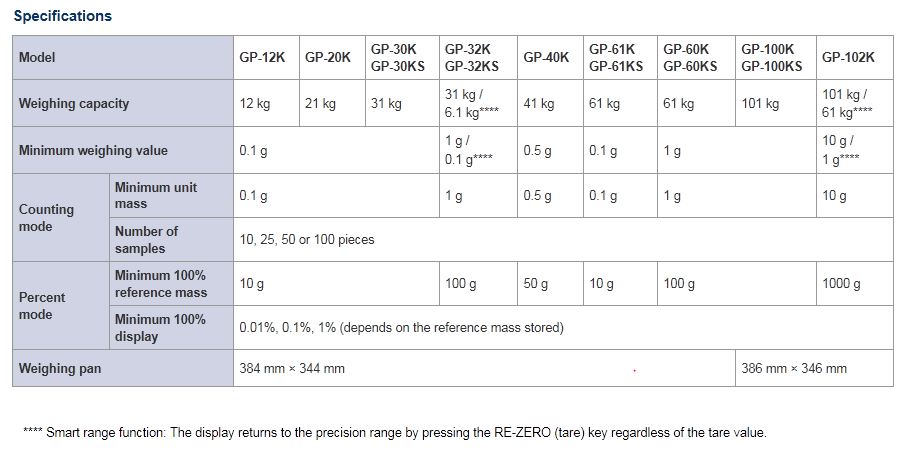

SPECEFICATIONSgx-gf
